Interactive User Guide · Opera Plus / BTHT-6190P
Clearer, louder TV sound without disturbing others.
Use the Opera Plus transmitter for low-delay TV listening, or pair the headphones directly with a Bluetooth TV.
For the recommended setup, slide the headphone switch to Base / TV. Use Bluetooth / Phone only for direct Bluetooth pairing.
Clear dialogueUp to 20 hoursStart setup
How do you want to connect?
Choose the option that works best for you.
★ Use the Opera Plus transmitter for the lowest-delay TV listening experience.
How the recommended setup works
The transmitter sends your TV sound to the headphones.
TVYour TVHDMI ARC, Optical, or AUX output

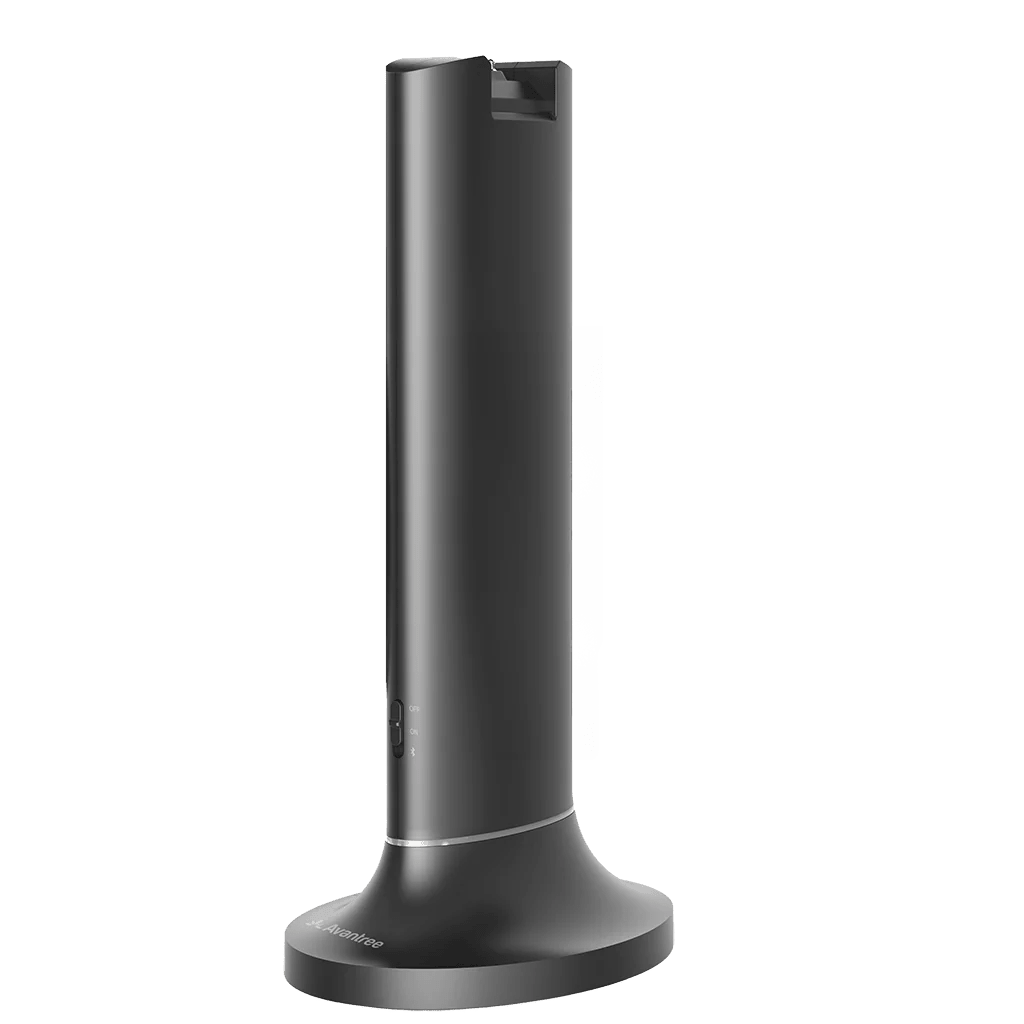

TXOpera Plus transmitterReceives TV audio

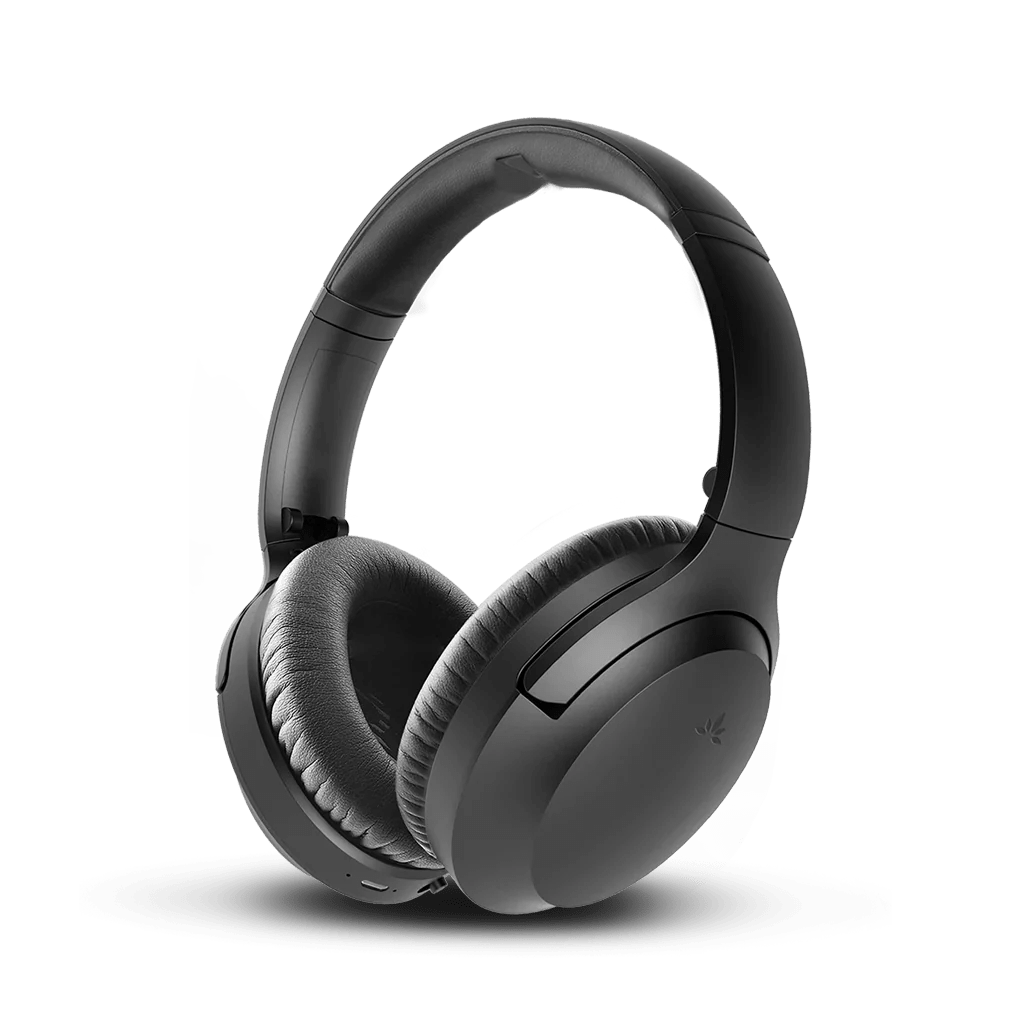

HPOpera Plus headphonesAuto-connect in Base / TV mode
For normal TV use, do not pair through the TV’s Bluetooth menu. Use Base / TV; a solid blue LED means the headphones are connected.
Got it — Start setupRecommended kit setup
Four steps. One clear result.
Follow each step in order. We show what to do, what to look for, and how to fix it.
Step 1
Power the transmitter.
Place it near the TV. Keep the audio cable loose, not stretched.
Connect power
- Connect USB-C to the transmitter.
- Connect USB-A to a 5 V, 500 mA–2 A power source.
✓
Expected: the transmitter turns on. The audio-signal light may blink until the TV sends sound.
No light? Reconnect both cable ends. Then try another USB power source.
Step 2
Choose one TV audio output.
Look at the labels on the back or side of the TV, then choose the matching path.
Using a soundbar? Complete headphone setup first. Optical and AUX pass-through are covered later; HDMI ARC soundbars cannot share the ARC port directly.
Which TV output do you have?
Tap a connection to reveal its cable, switch position, and next setting.
Connect with Optical
- Remove the protective caps from both cable ends.
- Connect TV OPTICAL / DIGITAL AUDIO OUT to transmitter OPT IN.
- Set the transmitter Input Selector to OPT.
Next: set the TV sound output to Optical/External Speaker and Digital Audio Format to PCM.
Connect with HDMI ARC
- Use the TV port specifically labeled HDMI ARC or eARC.
- Connect that port to the transmitter HDMI ARC input.
- Set the transmitter Input Selector to HDMI ARC.
Next: select HDMI ARC/Receiver as the TV sound output, turn eARC off, and set Digital Audio Format to PCM.
Connect with AUX / 3.5 mm
- Connect TV HEADPHONES / AUDIO OUT to transmitter AUX IN.
- Set the transmitter Input Selector to AUX.
- Set TV sound output to Headphones and raise TV volume to a normal level.
Next: play a program with speech; PCM is normally not required for analog AUX.
Step 3
Set the TV audio output.
Use your TV remote. Then match the settings to your cable.
Use your TV remote controlThese settings are changed on the TV—not on the Opera Plus transmitter.
Choose the card that matches your cable
HDMI cable
- Sound Output
- HDMI ARC / Receiver
- eARC
- Off
- Digital Audio Format
- PCM or Stereo
3.5 mm cable
- Sound Output
- Headphones
- TV volume
- Raise to a normal level
No PCM setting needed.
Optical / HDMI ARC:Choose PCM. Dolby, DTS, Bitstream, or Auto may cause silence.
✓
Test it: play a TV program with speaking voices.
Find PCM settings for your TV brand
Step 4
Listen with the headphones.
The headphones auto-connect to the powered transmitter in Base / TV mode.
✓
Success: the headphone LED is solid blue and TV sound plays.
Connect to the transmitter
- Slide the headphone switch to Base / TV.
- Keep the headphones near the powered transmitter.
- Wait for the LED to turn solid blue.
- Put on the headphones and raise the volume slowly.
Red + blue flashing? The headphones are in Bluetooth / Phone mode. Slide the switch to Base / TV.
Flashing blue or no sound? Confirm the transmitter is on, then power-cycle both devices nearby.
TV Bluetooth setup
Connect the headphones directly to a Bluetooth TV.
This bypasses the Opera Plus transmitter. Bluetooth TV audio may have more lip-sync delay and does not use the transmitter’s Volume Boost.
Turn off the transmitter
Start Bluetooth pairing
Slide the headphone switch to Bluetooth / Phone. If red and blue do not flash, hold the pairing button for 3 seconds.
Select Opera Plus
On the TV, open Settings → Sound → Bluetooth speaker list and select Opera Plus.
Confirm solid blue
Solid blue means the Bluetooth connection is ready.
Want lower-delay TV sound?
Quick fixes
Match what you see.
Each fix states the action, expected result, and next step.
⌁Headphones won't connect to the transmitter
- Slide the headphone switch to Base / TV.
- Confirm the transmitter is powered on.
- Keep the headphones close to the transmitter.
- Turn both devices off and on.
Expected: the headphone LED turns solid blue. If it keeps flashing, open the official FAQ or submit a ticket.
🔇Joined, but no TV sound
- Check the cable: use a TV audio OUT port and match the transmitter selector to HDMI ARC, OPT, or AUX.
- Check the transmitter: a solid Audio Signal light means usable TV audio is arriving. If it blinks, correct the cable or TV settings first.
- Check the TV: for Optical/HDMI ARC choose the matching Sound Output and set Digital Audio Format to PCM; for HDMI ARC also turn eARC off.
- Check volume: raise the TV volume for AUX, then raise the headphone volume and try Voice Clear 1 or 2.
- Restart: turn the transmitter OFF, then ON.
Expected: the Audio Signal light is solid and spoken dialogue plays. Still silent? Reopen Step 2 and follow the matching connection path from the beginning.
ARCHDMI ARC has no sound
- Use the TV port labeled HDMI ARC/eARC—not a standard HDMI input.
- Select HDMI ARC/Receiver as TV Sound Output.
- Turn eARC off and set Digital Audio Format to PCM.
- Set the transmitter Input Selector to HDMI ARC, then restart the TV and transmitter.
A soundbar already using the ARC port must be disconnected or rerouted; Opera Plus soundbar pass-through is Optical/AUX only.
⚡No light on transmitter
- Reconnect USB-C at both ends.
- Try a known-working 5 V USB adapter.
- Slide the transmitter switch to OFF, then ON.
If there is still no light, submit a support ticket with a photo of the power connection.
🔋Headphones will not charge
- Confirm the dock has power.
- Align the charging contacts and look for solid red.
- Try USB-C charging directly.
- Allow about 2.5 hours.
Daily use
Adjust volume.
Follow the same order as the original Opera Plus guide.
- Adjust on the headphones.Use the + / − buttons on the headphones.
- Adjust TV volume, if available.Optical / HDMI ARC: TV volume may be fixed.
AUX: the TV remote volume may work. - Turn on VOL Boost on the base.Switch it on for up to +8 dB higher output.
Volume Boost is intended to help seniors hear more clearly. It is not designed for severe hearing loss or hearing-aid-level use.
Bluetooth / Phone mode
Use the headphones with a phone or PC.
This connects the headphones directly to your Bluetooth device. Turn off the Opera Plus transmitter first.
- Slide the headphone switch to Bluetooth / Phone.The LED flashes red and blue.
- Not flashing red and blue?Hold the pairing button for 3 seconds.
- Open Bluetooth on your phone, tablet, or computer.Select Opera Plus in the Bluetooth device list.
- Confirm the connection.A solid blue LED means connected.
Watch: connect Opera Plus headphones to a phone or PC
Daily use
Charge the headphones.
Use the powered dock or a USB-C cable.
Power & charging
About 2.5 hours for a full charge.
- Use the powered dock or USB-C with a 5 V, 1–2.4 A source.
- On the dock, align the charging contacts.
- Solid red means charging; the LED turns off when full.
Not charging? Reseat the headphones or USB-C cable and verify the power source.
Battery reference
Up to 20 hours of playtime. Actual time varies with volume, connection, and use.
Daily use

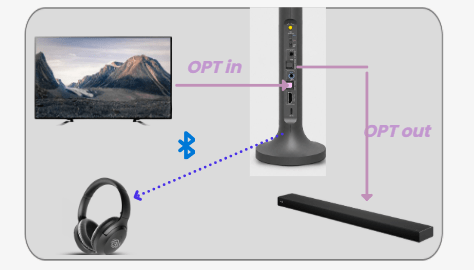

Use a soundbar and headphones together.
Match the input and output cable.
In the box
Everything included.
Headphones + transmitter dockUSB-C power cable
Optical cable
AUX cableHDMI cable is not included. Use a standard HDMI cable only when connecting through HDMI ARC.
Reference
Connections, lights, and official help.
Quick reference
- TV inputs
- HDMI ARC, Optical, or AUX
- Solid blue
- Headphones connected
- Flashing blue
- Not connected to the transmitter
- Red + blue
- Bluetooth pairing mode
- Solid red
- Charging
- Charge time
- About 2.5 hours
- Playtime
- Up to 20 hours
Official resources from the product page
STILL NEED HELP?
Get the right help for Opera Plus.
Choose Opera Plus / BTHT-6190P and include the TV model, connection type, LED pattern, and a clear photo of the TV and transmitter ports.
RECOMMENDEDSubmit an Opera Plus support ticketThe form accepts photos or screenshots and asks product-specific questions.Start support request →
DON'T WANT TO SUBMIT A TICKET?
